Comfortable Space
Simple Operation
Overall Width 950 mm
Simple Operation
Overall Width 950 mm

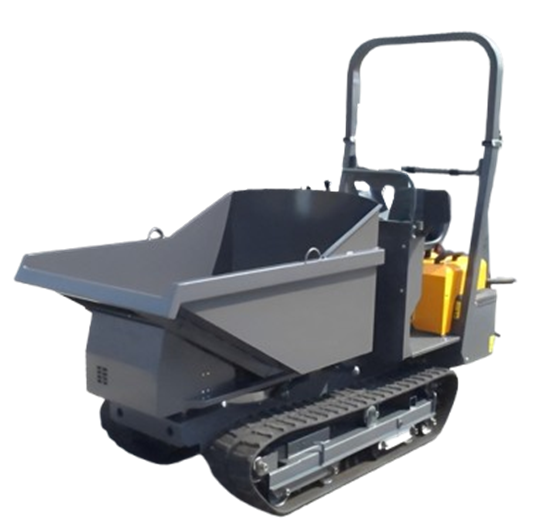

WB12γ-DTB
Max.Loading capacity 1,200kg
What’s Special?
Full open engine cover
Easy maintenance by settingEngine under seat.
Easy maintenance by settingEngine under seat.
Flat Space
The support can be removed, which is also very useful for transportation such as long and wide materials.
The support can be removed, which is also very useful for transportation such as long and wide materials.
Center Seat
The seat gets high visuality to check R/L.
The seat gets high visuality to check R/L.
Sturdy Door
Door has 4.5 mm thickness of steel & designed to enhance toughness.
Door has 4.5 mm thickness of steel & designed to enhance toughness.
EngineKubota D902-E4 engine.Engine Spec 10.8kw /14.7PS.
HST PedalCan drive easily to forward & reverse by HST without switching lever.
Travelling Performance
The truck roller balance helps body stability & high turn performance.

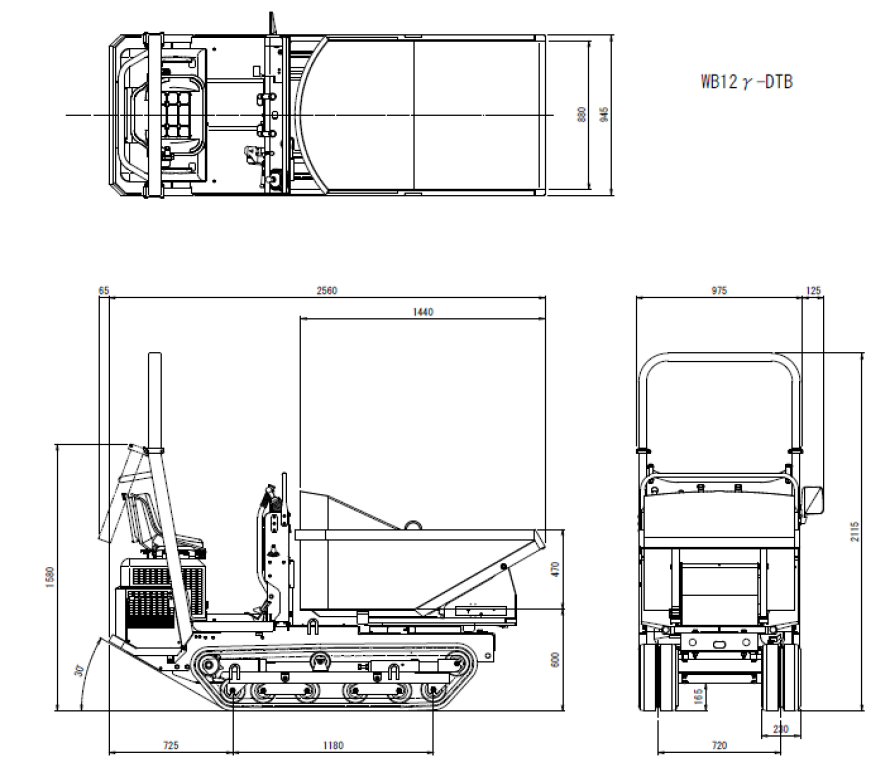

| Machine Size | ||
| Overall Length | mm | 2,610 |
| Overall Width | mm | 975 |
| Overall Height | mm | 1,405 |
| Ground Clearance | mm | 145 |
| Machine Weight | mm | 885 |
| Crawler | ||
| Crawler Centre | mm | 720 |
| Ground Contact | mm | 1,180 |
| Width | mm | 230 |
| Travel | ||
| Operating | – | Wet Multi-plate |
| Transmission | – | Continuously Variable Transmission |
| Speed | ||
| Forward | km/h | 0-5.6 |
| Reverse | km/h | 0-3.5 |
| Engine | ||
| Type | – | Liquid-cooled Diesel/Kubota Z602 |
| Output | kw(ps) | 10.8 |
| Displacement | cc | 599 |
| Starting method | – | Cell |
| Fuel Tank Capacity | L | 19.5 |
| Bucket Type | ||
| Bucket Type | – | Three-way Open & Dump |
| Floor Height | mm | 620 |
| Overall Length | mm | 1,470 |
| Overall Width | mm | 855 |
| Overall Height | mm | 320 |
| Max. Loading Capacity | kg | 1,200 |
| Deck Body Capacity | m3 | 0.40 |
| Dumping Angle | deg | 60 |
